Open Frame Transformers datasheets – S series – S38 – S84

Open Frame Transformers datasheets – S series – S38 – S84edumaine@aeservice.fr2025-07-01T09:46:12+00:00

Open Frame Transformers

S Series

S38-S84

S38 Standard series

S38-–-S84

S3814 3,5VA Ta 40ºCS3814 3,5VA Ta 40ºC

S3814 3,5VA Ta 70ºCS3814 3,5VA Ta 70ºC

S3820 6VA Ta 40ºCS3820 6VA Ta 40ºC

S3820 4VA Ta 70ºCS3820 4VA Ta 70ºC

S42 Standard series

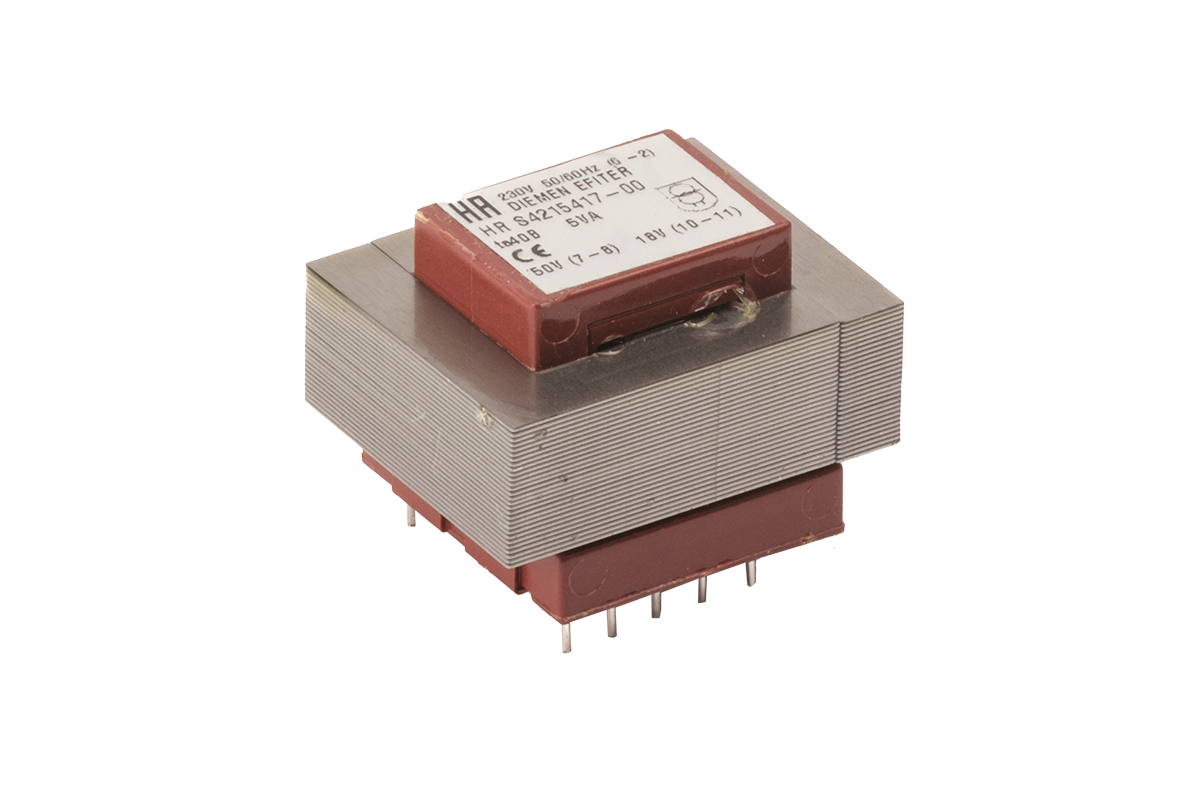

S-42-1

S4215 7VA Ta 40ºCS4215 7VA Ta 40ºC

S4215 5VA Ta 70ºCS4215 5VA Ta 70ºC

S48 Standard series

S-48

S4817 10VA Ta 40ºCS4817 10VA Ta 40ºC

S4817 8VA Ta 70ºCS4817 8VA Ta 70ºC

S4821 12VA Ta 40ºCS4821 12VA Ta 40ºC

S4821 10VA Ta 70ºCS4821 10VA Ta 70ºC

S4826 14VA Ta 40ºCS4826 14VA Ta 40ºC

S4826 12VA Ta 70ºCS4826 12VA Ta 70ºC

S54 Standard series

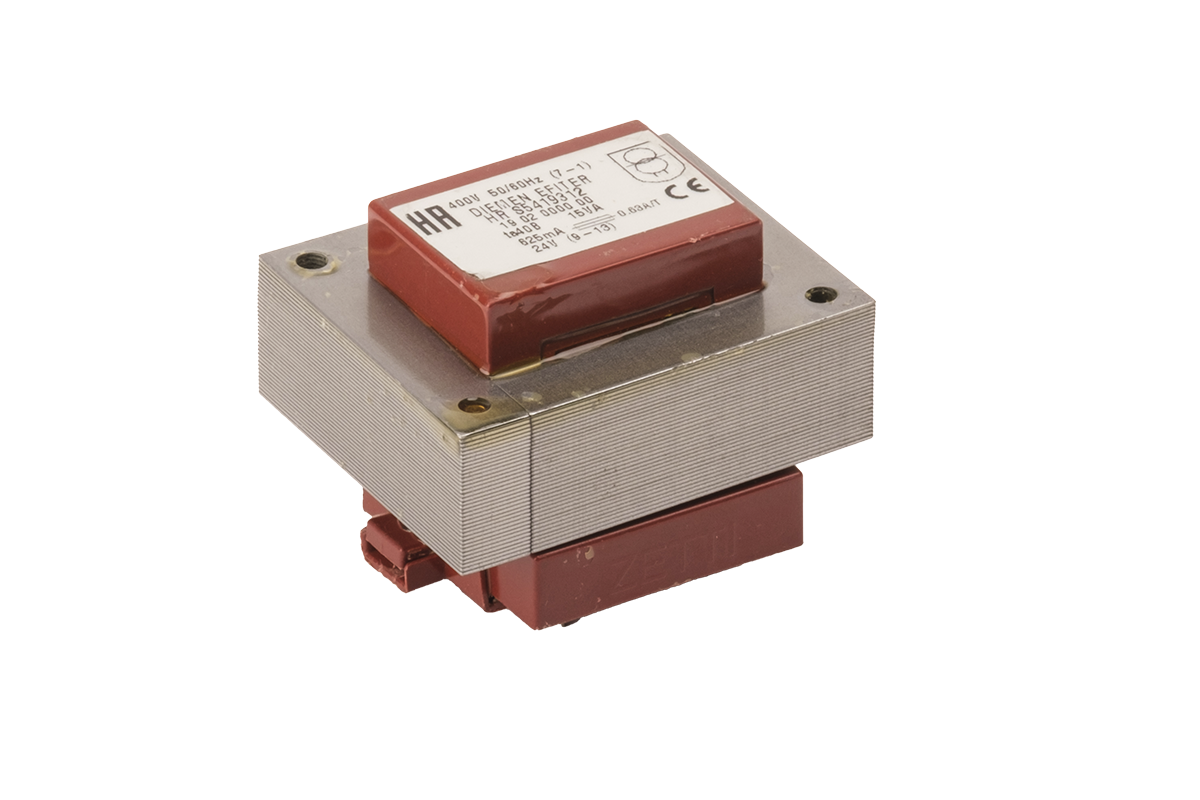

S-54

S5419 16VA Ta 40ºCS5419 16VA Ta 40ºC

S5419 13VA Ta 70ºCS5419 13VA Ta 70ºC

S5423 25VA Ta 40ºCS5423 25VA Ta 40ºC

S5423 20VA Ta 70ºCS5423 20VA Ta 70ºC

S60 Standard series

S-60

S6021 25VA Ta 40ºCS6021 25VA Ta 40ºC

S6021 20VA Ta 70ºCS6021 20VA Ta 70ºC

S6031 35VA Ta 40ºCS6031 35VA Ta 40ºC

S6031 30VA Ta 70ºCS6031 30VA Ta 70ºC

S66 Standard series

S38-–-S84

S6623 40VA Ta 40ºCS6623 40VA Ta 40ºC

S6623 35VA Ta 70ºCS6623 35VA Ta 70ºC

S6631 70VA Ta 40ºCS6631 70VA Ta 40ºC

S6631 60VA Ta 70ºCS6631 60VA Ta 70ºC

S75 Standard series

S38-–-S84

S7525 70VA Ta 40ºCS7525 70VA Ta 40ºC

S7525 60VA Ta 70ºCS7525 60VA Ta 70ºC

S7535 100VA Ta 40ºCS7535 100VA Ta 40ºC

S7535 85VA Ta 70ºCS7535 85VA Ta 70ºC

S7540 120VA Ta 40ºCS7540 120VA Ta 40ºC

S7540 100VA Ta 70ºCS7540 100VA Ta 70ºC

S84 Standard series

S-84

S8444 120VA Ta 40ºCS8444 120VA Ta 40ºC

S8444 100VA Ta 70ºCS8444 100VA Ta 70ºC

S8450 150VA Ta 40ºCS8450 150VA Ta 40ºC

S8450 130VA Ta 70ºCS8450 130VA Ta 70ºC
